Billet CNC machined products. Available for the CB400Four. Some of the parts will also fit the CB350Four. |
|
|
CNC machined points cover, with the Honda logo engraved after anodising. * Available black or silver anodised finish, other colours to special order * Can be ordered without the logo. * Matching alternator cover plate also available. * Will also fit the CB350F, CB500K-K2, CB550K-K7/8, CB550F-F7/8.
|
|
| Billet Alternator cover plate - Part # 400-050 Machined from 6061T6 Alloy. * Engraved Honda wing logo. * Anodised black or silver finish. Other colours to special order. * Stainless steel button head allen screws included.
|
 |
 |
Left hand crank case cover. Part # 400-051 For race use only, made from 6082 T6 aluminium. * Complete with stainless steel cap screws. * Uses the oe gasket. * Alternator must be removed. * Also available in Carbon fiber.
|
| Billet exhaust mounting clamps - Part # 400-045 Set of 4 cnc machined and anodised or polished for a great look. * Fitment for the CB350F, CB400F, CB550K 76-78, CB550F 76-77 * Lighter than the stock steel parts. * Anodised in a choice of colours. * Fits as per the stock parts.
|
 |
 |
Oil cooler mounting kit - Part # 400-046 & 400-047 Billet oil cooler adaptor/sandwich plate with a billet top frame bracket to mount the oil cooler matrix. * Anodised or polished finish. * Stainless steel hardware. * Viton o-ring included. * Not included is the pipe work and cooler matrix.
|
| Aluminium Breather tank. Part # 400-052 Can be manufactured to your design or as per the photo. This one fits under the seat tail. It has 1 x drain outlet, 2 x inlets and 1 x breather outlet. This is a legal requirement for the race track. |
 |
 |
Aluminium breather tank Part # 400-053 Here we have a very nifty breather tank that fits in place of the starter motor. Sprocket cover will need some mods and of coarse the starter will have to be removed. Uses the same mount points as the OE starter. |
| Billet kickstarter blanking plug - Part # 400-031 If you are removing the kickstarter then you might as well remove the complete shaft to save some weight, plug the hole with this niffty alloy plug, complete with o-ring and fitting hardware. I also have blanking plugs for the rev counter drive, when a electronic rev counter is used as on my yoshi racer. Part # 400-032 Need a spacer to replace the speedo drive, going racing then I have some of these. give me a call. Junking the starter motor, I have a plug for there also, or how about a alloy breather tank to fit in it's place.
|
|
|
Oil cooler mounting plate. Part # 400-048 For the mounting of the cooler matrix. * Goodridge type cooler. * Email for details. * Complete kit available. * Machined from 6082T6 Aluminium, anodised black, other colours and polished on request. |
|
|
|
|
Titanium Flanged and drilled screws. Wow..! Super trick 6AL4V Grade 5 Titanium screws. * M6 and M8 Only certain lenghts available. * Rolled threads. * Drilled for lockwire. * M6 with a flanged 8mm hex head, M8 with a flanged 12mm hex head. * Price on application, Manufactured to order only. * Can also be manufactured in Stainless steel. |

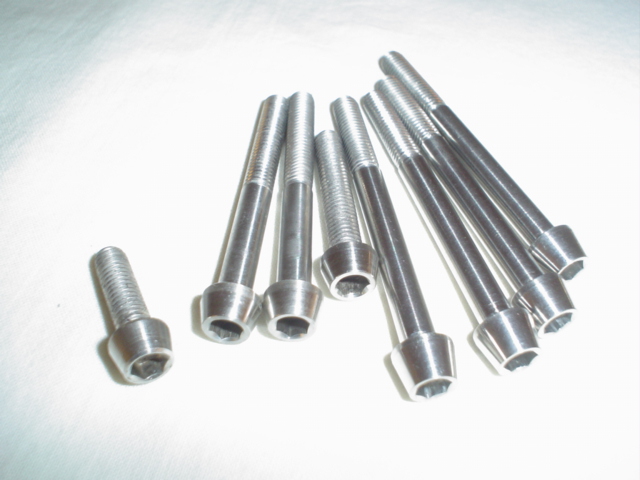

| Tapered allen head screw kits. Tapered allen screw kits for the CB350F and CB400F. * 303 stainless steel. * Kit #1: Clutch cover, sprocket/starter cover, alternator cover, points cover (2 x counter sunk allen screws). * Kit #2: Tappet cover. * Kit #3: Sump cover (oil pan) * Kit #4: Crankcase. * Kit #5 : Oil pump, Points plate, Front sprocket. * Kit #6: Complete screw kit, includes all from kit #1 to kit #5.
|
|
|
Oil Gallery plugs. These are made to fit the CB400F front and main oil gallery ports. * I made these to be able to tap into the oil supply for oil coolers for the race motors. * Will also fit the top right hand oil gallery plug on the CB750 motors. use a reducer on the AN6 fitting as a supply for a dash mounted oil pressure gauge. |
| Oil Gallery plugs. UNI-009 (M20) UNI-010 (M16) * M20 fits to R/H main oil gallery under points cover. *M16 fits to front main oil gallery. *Can be drilled and tapped for oil pressure gauge fitting. *Will also fit other SOHC 4's *Uses your OEM O-rings. *Anodised bright silver, othe colours on request. |
|
